Hardware Features | Software Features | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CAN bus | DB9 Conn | Bracket | Micro-SD | CAN FD | GPIO | SW config 120 ohm termination | Incoming Data & Log Recorder | Send Data | Gateway | CAN message triggered event & API Interface | Triggering an event on incoming CAN | Stand-Alone Sending | Playback Recorded Data |
||
Pocket CAN | Dual * | Male | Optional | X ** | X ** | ||||||||||
Desk CAN | Dual | Male + Female | Optional | X | X | X | Q3 2024 | ||||||||
Desk CAN FD | Dual | Male + Female | Optional | X | X | X | X | Q3 2024 | X | ||||||
Storage CAN | Dual | Male + Female | Optional | X | X | X | X | X | X | Q3 2024 | X | X | |||

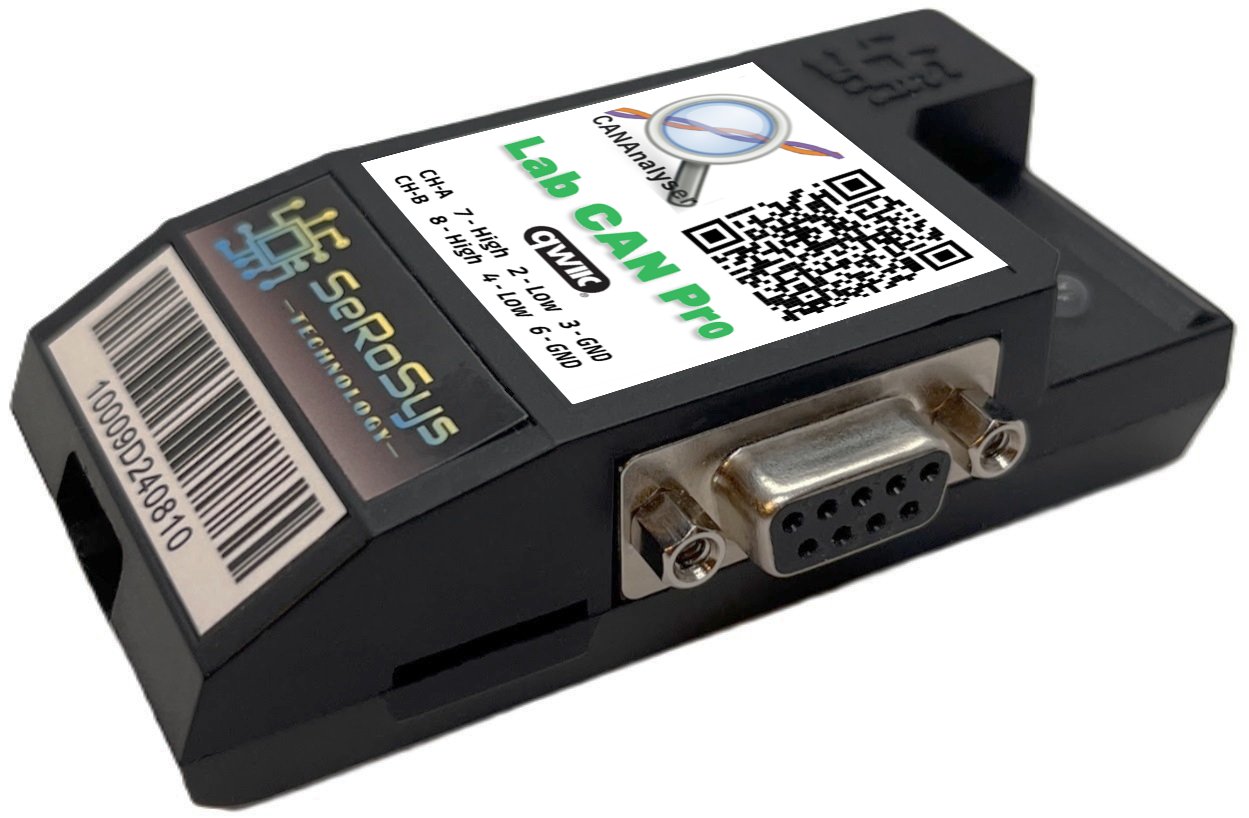

Lab CAN | Dual | Male + Female | Included | X | X | X | X | X | X | Q3 2024 | X | X | X | ||
Car CAN | Single | Male | Included | X | X | X | X | X | X | X | X |
* Pocket CAN supports dual bus, however it is limited to display traffic from one bus at a time as selected, but not on both buses in parallel. All other dual bus variants show full parallel bus traffic of sent and received data in a common view.
** Pocket CAN designed for lower traffic content buses. See detailed technical specifications on each product page below.
POCKET CAN | DESK CAN / FD (option) | STORAGE CAN | LAB CAN | CAR CAN |
---|---|---|---|---|
$149.00 MSRP | $349 – non FD $399 – with FD MSRP | price TBD | price TBD | price TBD |
Basic CAN hardware module with many great features at an entry point Send and Receive messages and export data with limitations on maximum bus messages plus selectable dual CAN bus monitoring and support for CAN DBC import along with graphical analyzer and TCP interface and reverse engineering tools | The starting point professional CAN hardware module with more features and power Upgraded micro offering higher CAN bus traffic support and full dual CAN bus monitoring plus male and female DB9 ports for CAN traffic pass-through bus tapping, CAN message event triggering, macro message sending and API interface. Optional variant with CAN FD | Advanced Features and data storage hardware module for a customized experience Desk CAN plus a micro-SD reader for recording extended or standalone CAN traffic and the ability to configure the hardware as a CAN gateway. | Tailored for a more integrated hardware programmable lab environment including CAN FD Desk CAN with upgraded support for dual CAN FD and programmable GPIO interface and the ability to configure the hardware as a CAN gateway and comes with an industry standard rack mount bracket | A true standalone data logger that can be wired into a vehicle or other test device Dedicated standalone hardware module with micro-SD card and GPIO intended to interface to a vehicle. It can be programmed to send / receive messages and interface and trigger on GPIO hardware events and comes with a mounting bracket |
Q1 2024! | non-FD Q1’24! FD Q3’24! | Coming Soon | Coming Soon | Coming Soon |
